CCMVAL Chemistry Plots

Here are some first plots from the 5 models which have submitted 'full chemistry' results ahead of the CCMVAL workshop. These are preliminary and just for internal circulation. All comments welcome.

The 7 models are:

• UMSLIMCAT (Leeds, Chipperfield and Tian),
• E39C (DLR, Dameris, Eyring et al),
• MAECHAM (MPI Mainz/Hamburg, Bruehl, Giorgetta et al),
• ULAQ (L'Aquila, Pitari),
• WACCM (NCAR, Kinnison, Garcia, et al).
• CCSRNIES ().
• SOCOL ().

The plots have been produced by Wenshou Tian (wenshou@env.leeds.ac.uk).

• Animations of monthly zonal mean fields

  The movies run for 5 years (e.g. 1980-1985, or 1990-1995) but the SPARC climatology (top left panel) repeats itself every year.

  NB: In the plots the MAECHAM latitudes have been reversed wrt the file. (Maybe written in wrong order?).

  1. O3 (32 Mb gif file). With SPARC climatology.
  2. CH4 (32 Mb gif file). With SPARC climatology.
  3. H2O (32 Mb gif file). With SPARC climatology.
  4. N2O (32 Mb gif file). With SPARC climatology.
  5. NOy (22 Mb gif file).
  6. HNO3 (32 Mb gif file). With SPARC climatology.
  7. N2O (32 Mb gif file). With SPARC climatology.
  8. HCl (32 Mb gif file). With SPARC climatology.
  9. ClO (32 Mb gif file). With SPARC climatology.
  10. Bry (32 Mb gif file). (Notes: UMSLIMCAT has +6pptv Bry).

• Correlation Plots

  Plots are coloured by model level (i.e. arbitrary and varies from plot to plot). The straight line is fit to lower stratosphere ER-2 data.

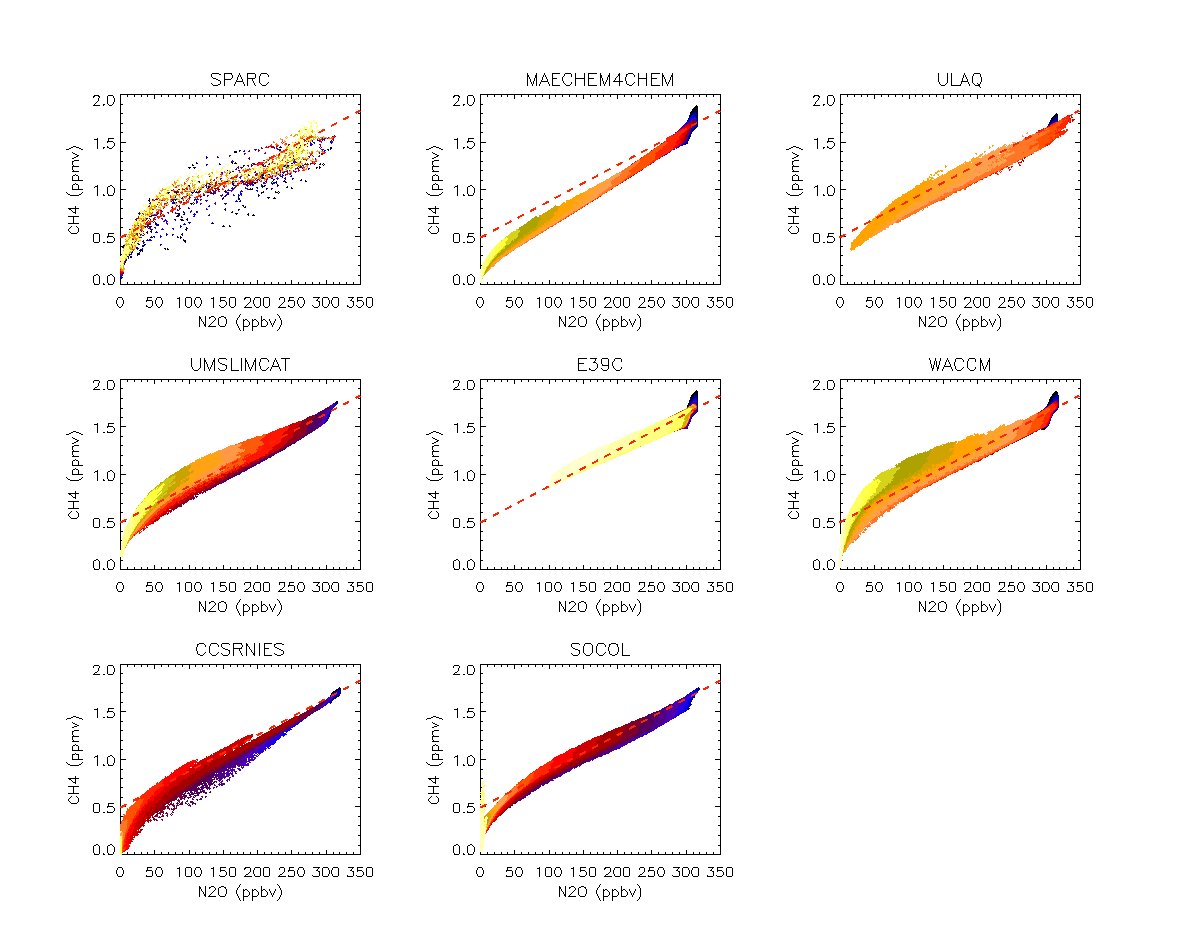

  1. CH4 v N2O (gif file).

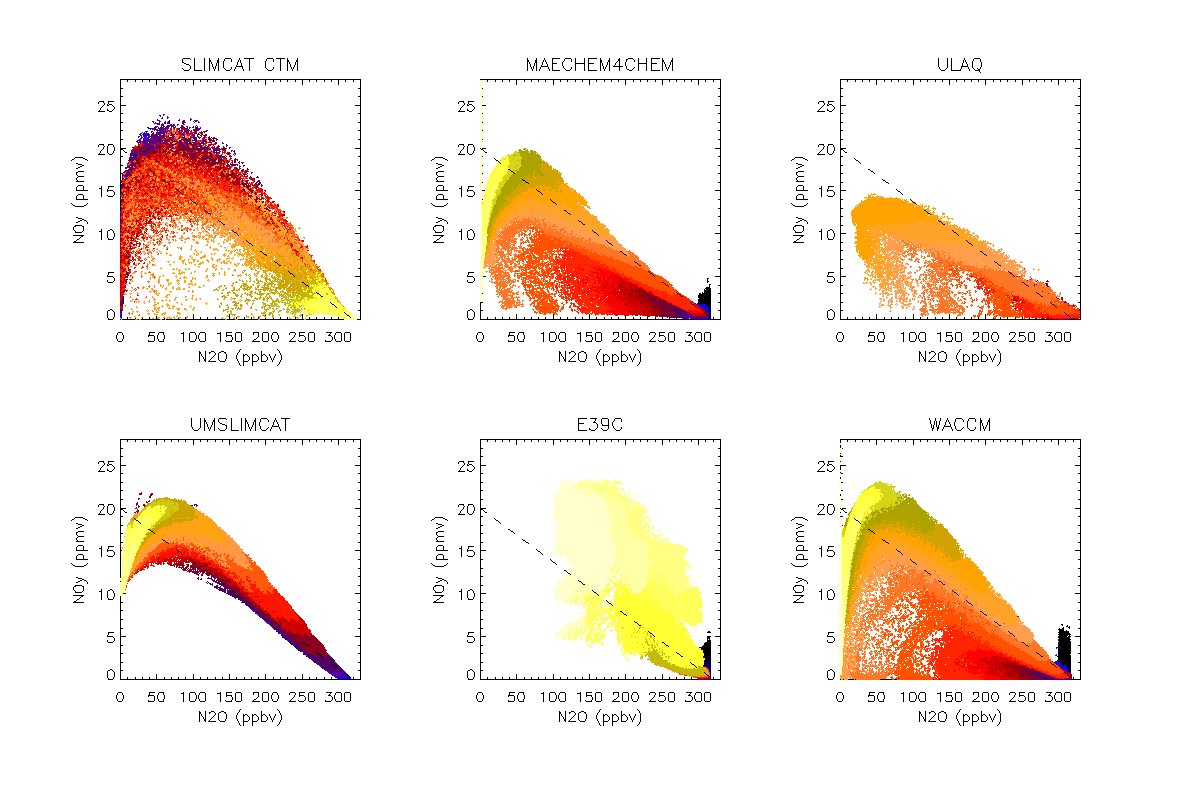

  2. NOy v N2O (gif file) (with SLIMCAT CTM).

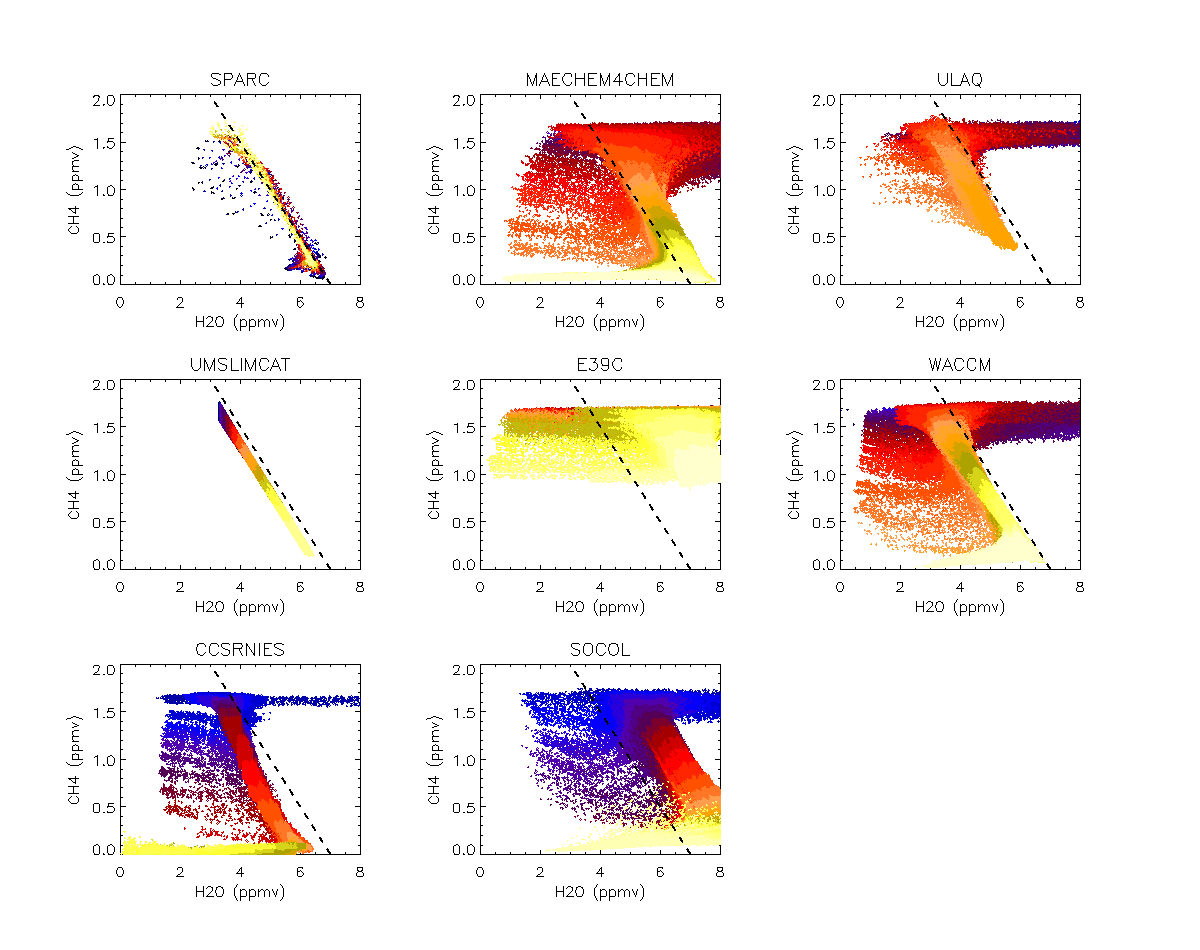

  3. CH4 v H2O (gif file) (with 2CH4 + H2O = 7 line).

• Other Plots

  to follow....
